Live Camera Monitor at Garage Exits: A Chicago Condo Fix

If you ever pulled outta a downtown Chicago condo garage, you know the deal — your nose is on the sidewalk before you can see anything coming. It's basically blind merging, except instead of the Kennedy at 5pm you got a stroller, a Lime scooter, and somebody walking their goldendoodle. Not great odds for anybody.

This week we wrapped a job at a highrise off the river that fixed exactly that. The building already had a Hanwha Wisenet WAVE system with a 4MP camera covering the sidewalk outside the gate. Great footage — for the security office. Useless for the driver about to roll out onto the street.

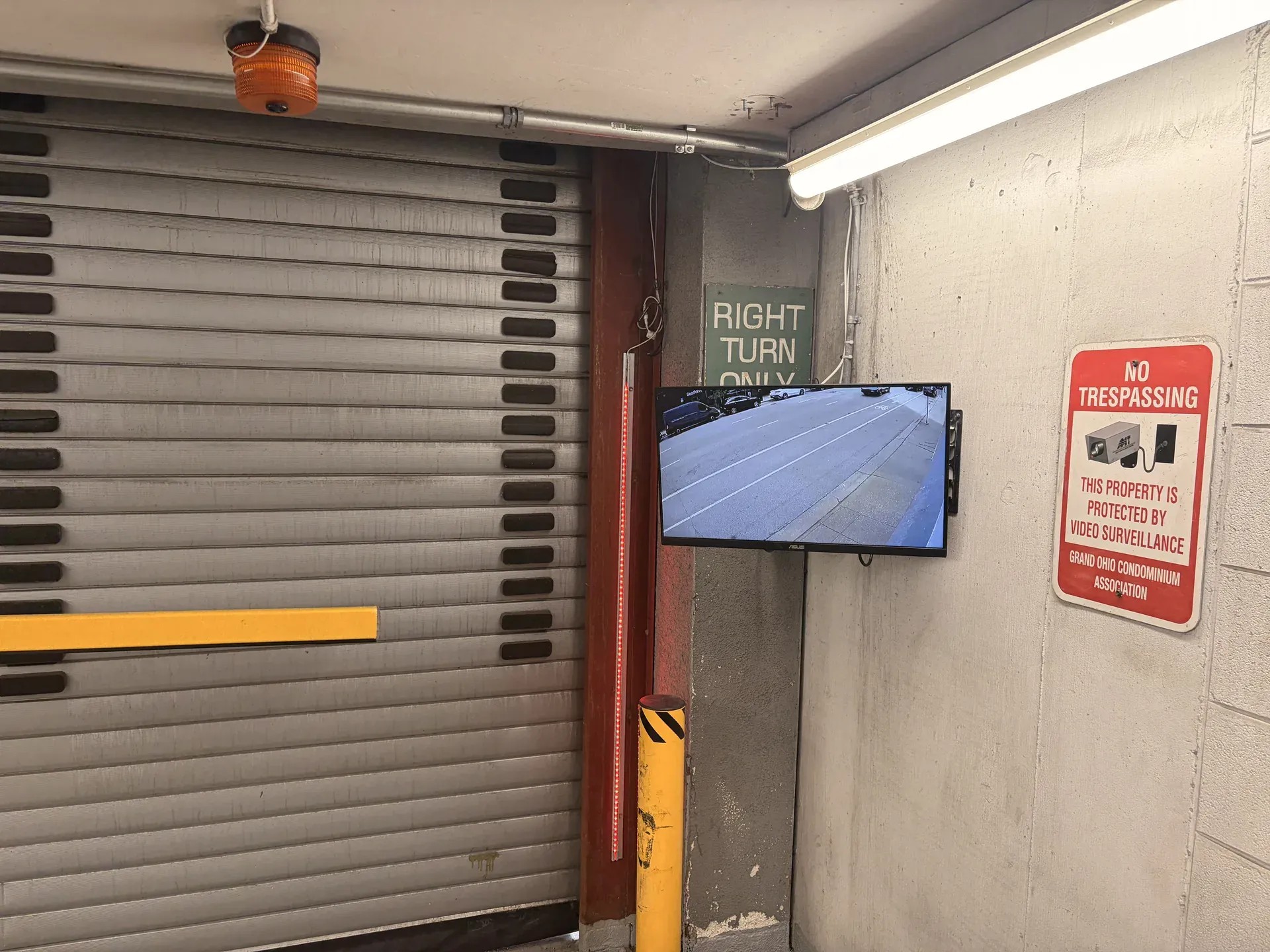

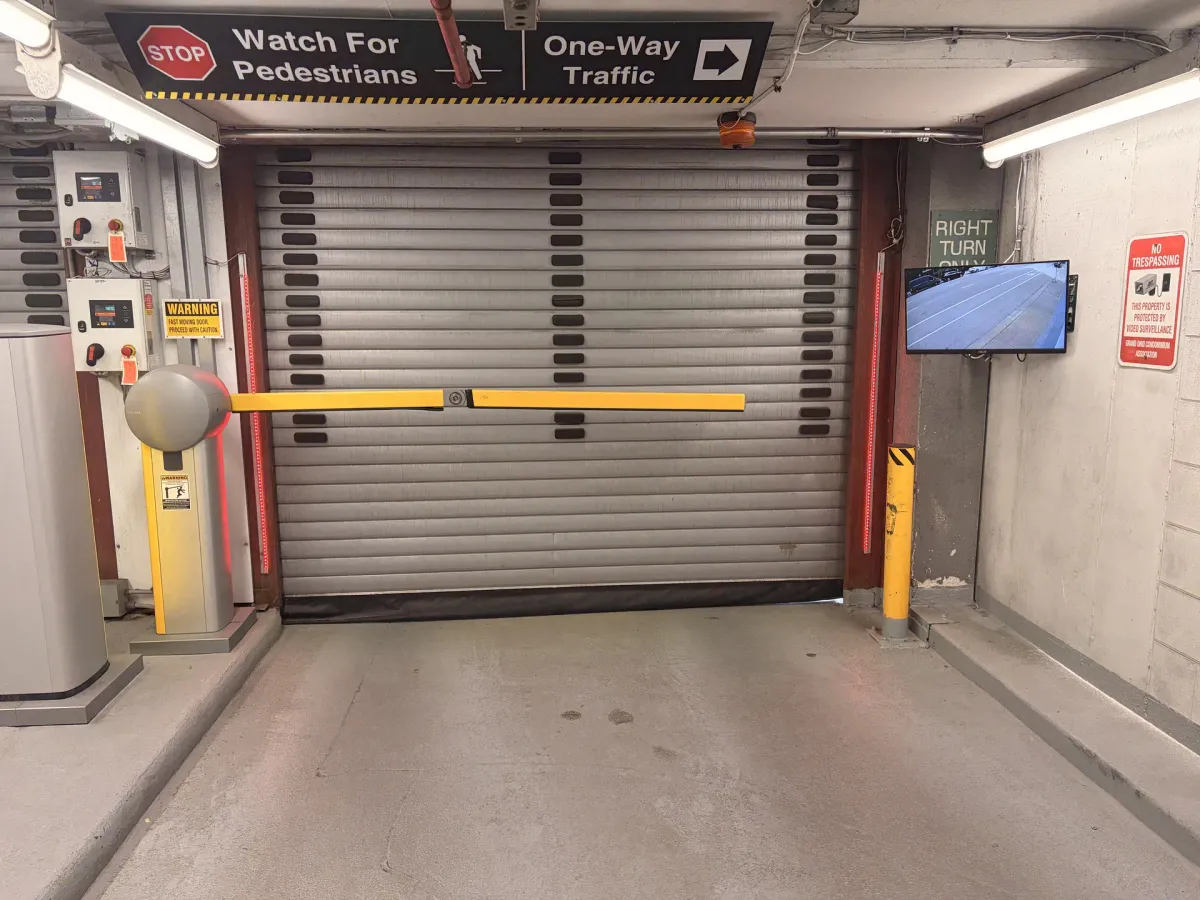

So we pulled the RTSP stream off that same camera and put a 27" monitor right above the exit gate, angled so the driver sees it through the windshield. Now you actually see who's walking by before you commit to pulling out. Saves bumpers, saves pedestrians, saves the property manager from a phonecall they don't wanna get.

If your Chicago condo or HOA building has the same blind-exit problem — and most of them do — we can usually solve it without ripping anything out. Cameras you already got, monitor we provide, done in a afternoon.

What's Actually in the Stack

Nothing fancy. Here's the hardware list:

• Camera: Capture Advance 4MP analog (basically rebadged Dahua), already mounted outside the gate
• Encoder: Hanwha SPE-1630, 16-channel HD analog to IP, feeds the existing WAVE server

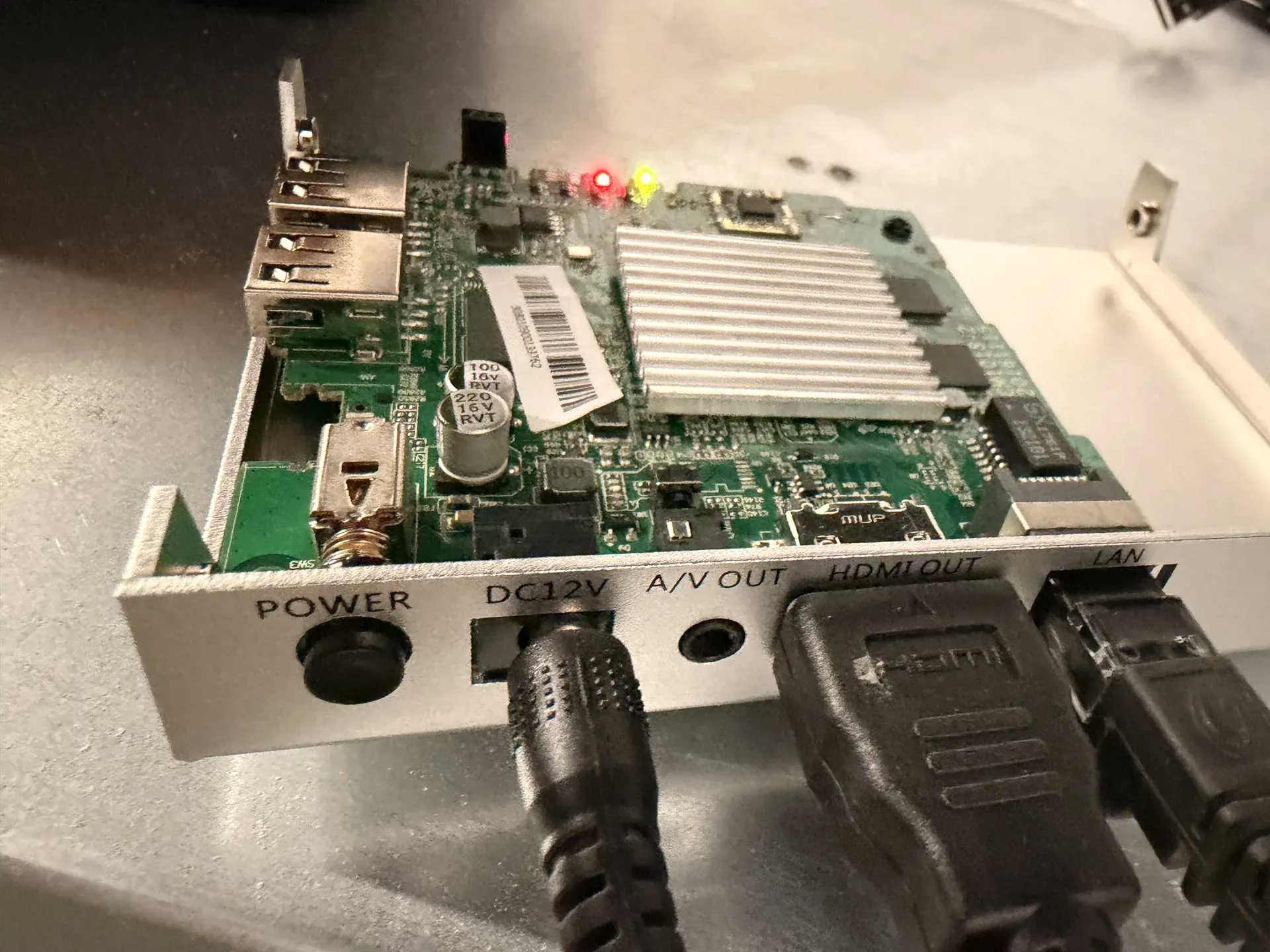

• Decoder: A cheap Amazon H.265/H.264 box that pulls the RTSP stream and spits HDMI
• Monitor: 27" wall-mounted, positioned so the driver sees it through the windshield
• Cabling: Existing LAN, HDMI run, 12V power. That's it.

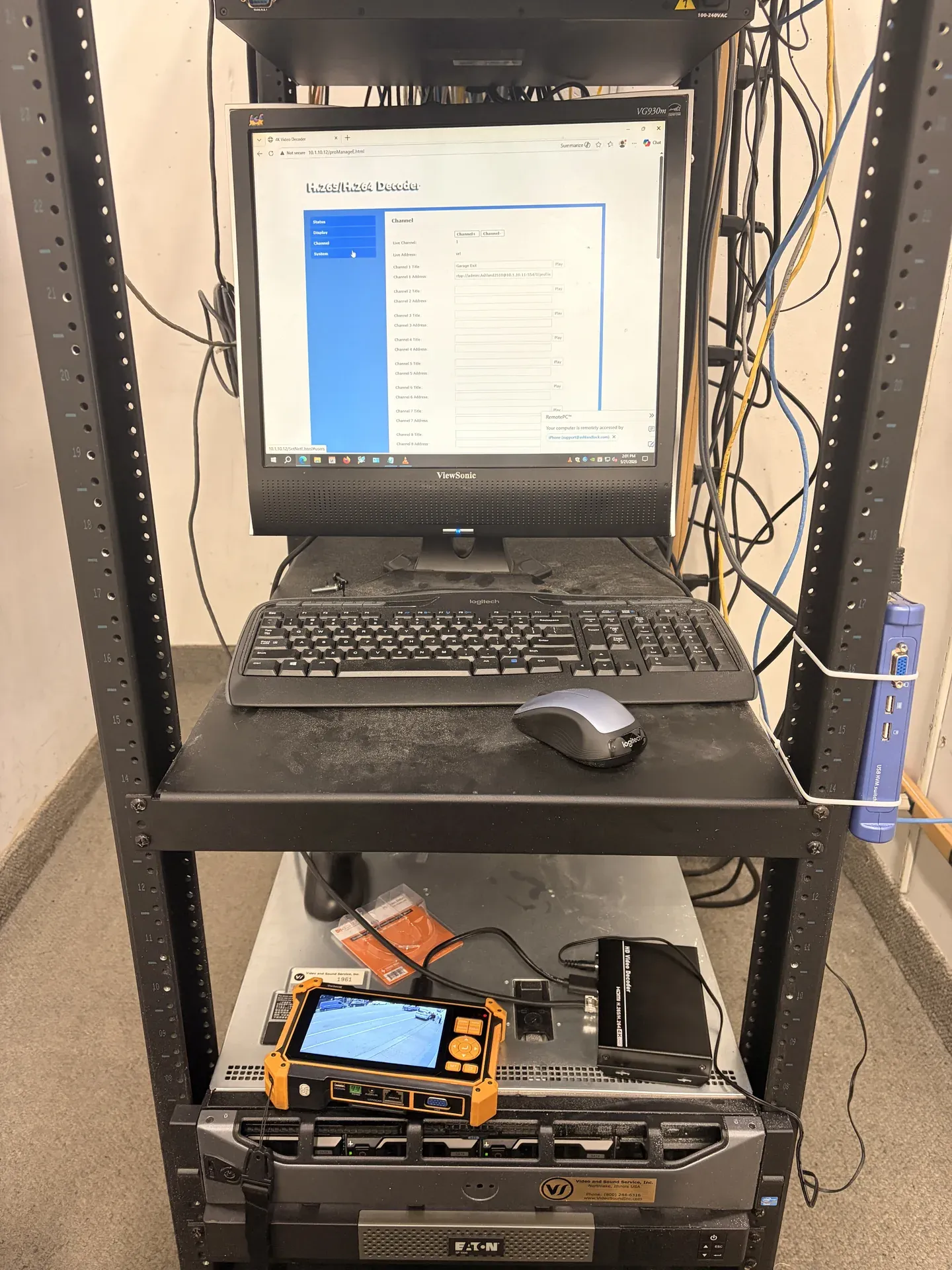

The whole trick is just routing the same RTSP feed the WAVE server is already recording. URL goes into the decoder, decoder goes into the monitor, monitor goes on the wall. Total install was about 3 hours including running HDMI behind the wall and verifying the stream with a portable CCTV tester before we buttoned everything up.

What I'd Do Different Next Time

Honest answer? I'd swap the no-name decoder for a real Hanwha SPD unit. The Amazon box works, and the price is right, but every couple weeks it likes to forget what it's doing and needs a powercycle. For a busy Chicago garage where the monitor is part of the safety story, that's not good enough. Hanwha decoder costs more upfront, but it's set-and-forget and it talks to WAVE the way it should.

Couple bucks more on day one beats a service call every other month. Lesson learned, building gets the upgrade next service cycle.

Who This Is For

• Chicago condo associations with underground or below-grade parking
• HOA buildings in Streeterville, River North, the Gold Coast, South Loop, West Loop
• North Shore properties (Winnetka, Wilmette, Glencoe, Evanston) with tight driveway exits
• Commercial garages where visibility is a real safety issue
• Anywhere the gate opens straight onto a sidewalk or alley

Pretty much any building south of North Avenue and east of the river has this exact setup problem. And let's be real — drivers in this city come off Lower Wacker like they're qualifying at Daytona, and your tenant pulling outta the garage is the one paying for that.

Why This Beats a Convex Mirror

Old-school answer to a blind exit is one of them big round mirrors. Works okay in daylight, terrible at night, fish-eye distortion makes it hard to judge distance, and good luck seeing anything when it rains. A real live camera feed gives the driver actual color, actual depth, actual time-of-day visibility. And it works at 2am the same as it works at 2pm.

Get the Same Setup for Your Building

If you manage a building in Chicago, Cook County, Lake County, or DuPage County and you wanna fix the blind-exit problem before somebody actually gets hit:

• See what we do: vidimost.us
• Service area: Chicago & North Shore security installation
• VMS we work with: Hanwha Wisenet WAVE, Nx Witness, Milestone, Genetec
• Email: [email protected]
• Phone: 872-254-5015

We'll come out, look at what you already got installed, and tell you straight if it's a 3-hour fix or a bigger project. Most of the time it's the first one.

— Vitaliy Verheles, VIDIMOST LLC
